Every photo below is from a Thermo-Trap installation completed by our team in the Ottawa area. Drag the sliders to compare before and after, and swipe through the step-by-step progress shots to see exactly how an install comes together.
Three recent vent upgrades, each one photographed from the same angle before and after installation.
Before
After
This porch-ceiling vent was an open hole with a taped foil duct sagging out of the soffit, leaking heat and inviting nesting birds. We fitted a louvered Thermo-Trap on a sealed mounting plate, flush to the soffit panel.
Before
After

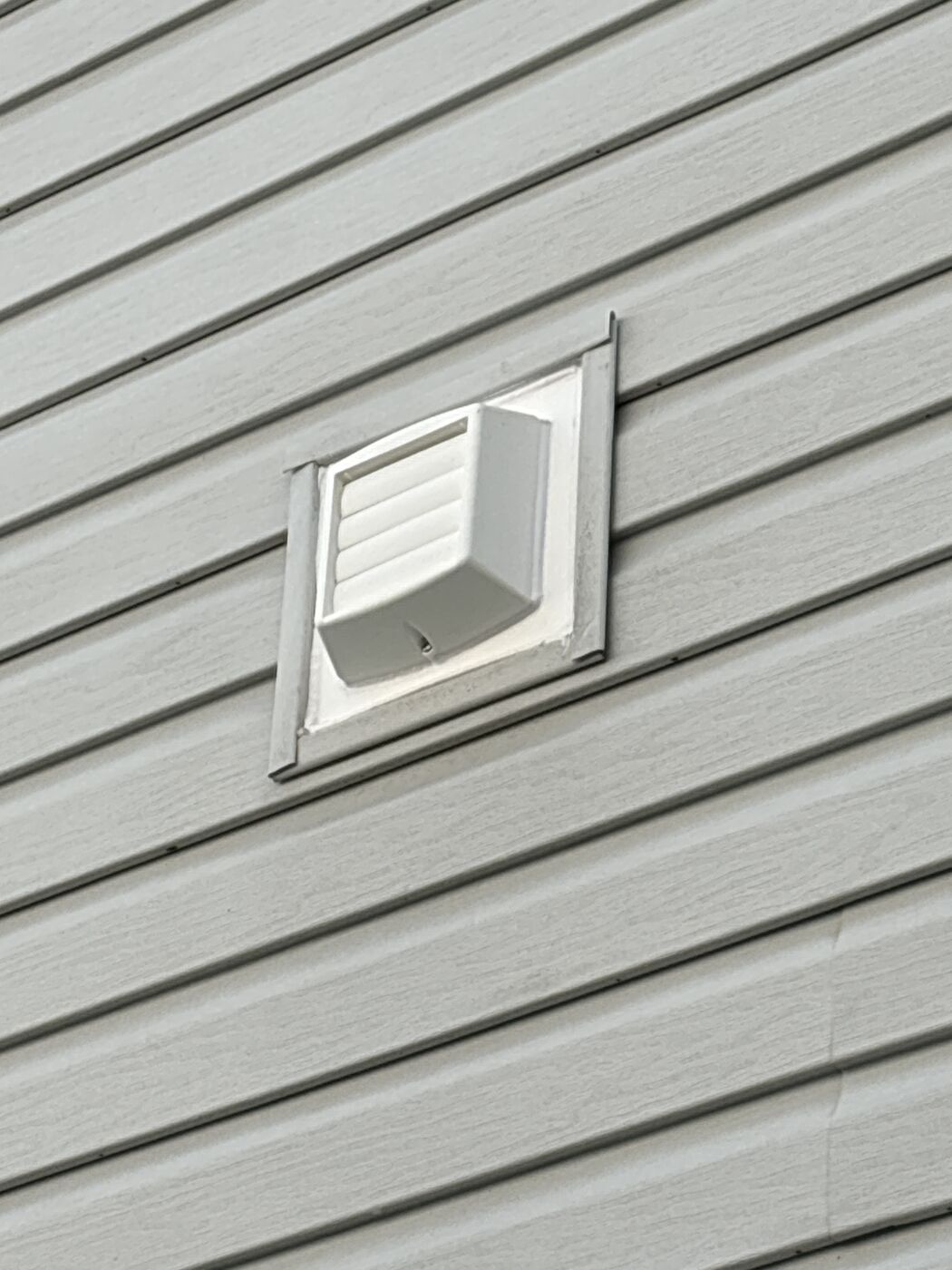

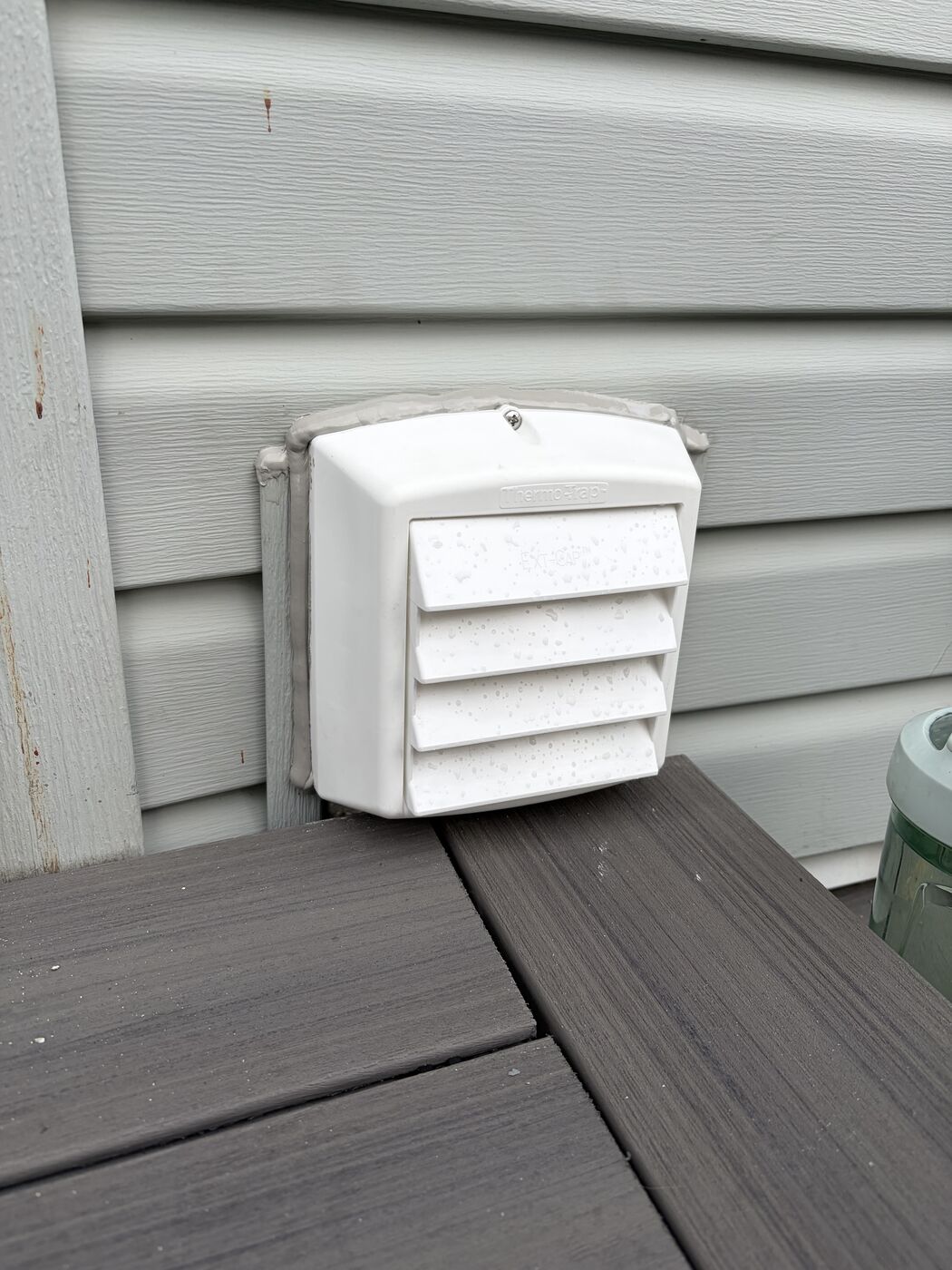

This is a fresh-air intake — the kind that feeds an air exchanger or gas heating appliance — and an opening that drafts constantly once the cover wears out. The replacement sits on a proper mounting block, fully caulked, with a trap built for intake airflow.
Before
After
This oven hood exhaust had clogged up completely — the cover was caked shut with grease and dust, and the caulking around the frame had let go. We swapped it for a sealed louvered unit that opens under airflow and closes tight when the hood is off.
Before
After
The old hood on this dark soffit was grimy, lint-packed, and uninsulated — the kind of vent that drafts in winter and freezes itself shut. We replaced it with our insulated soffit box, colour-matched in black so it disappears into the soffit.
Tip: drag the circle left or right to compare. Works great with a thumb.
Two recent brick-home jobs photographed step by step. Swipe through each series to follow the work from rough opening to finished vent.
Side-by-side exhaust openings cut into brick above the parging line. The finished vents were colour-matched in black so they sit cleanly against the stone instead of standing out.
Both ducts exposed with open gaps around the brick — this is where conditioned air escapes and pests get in.

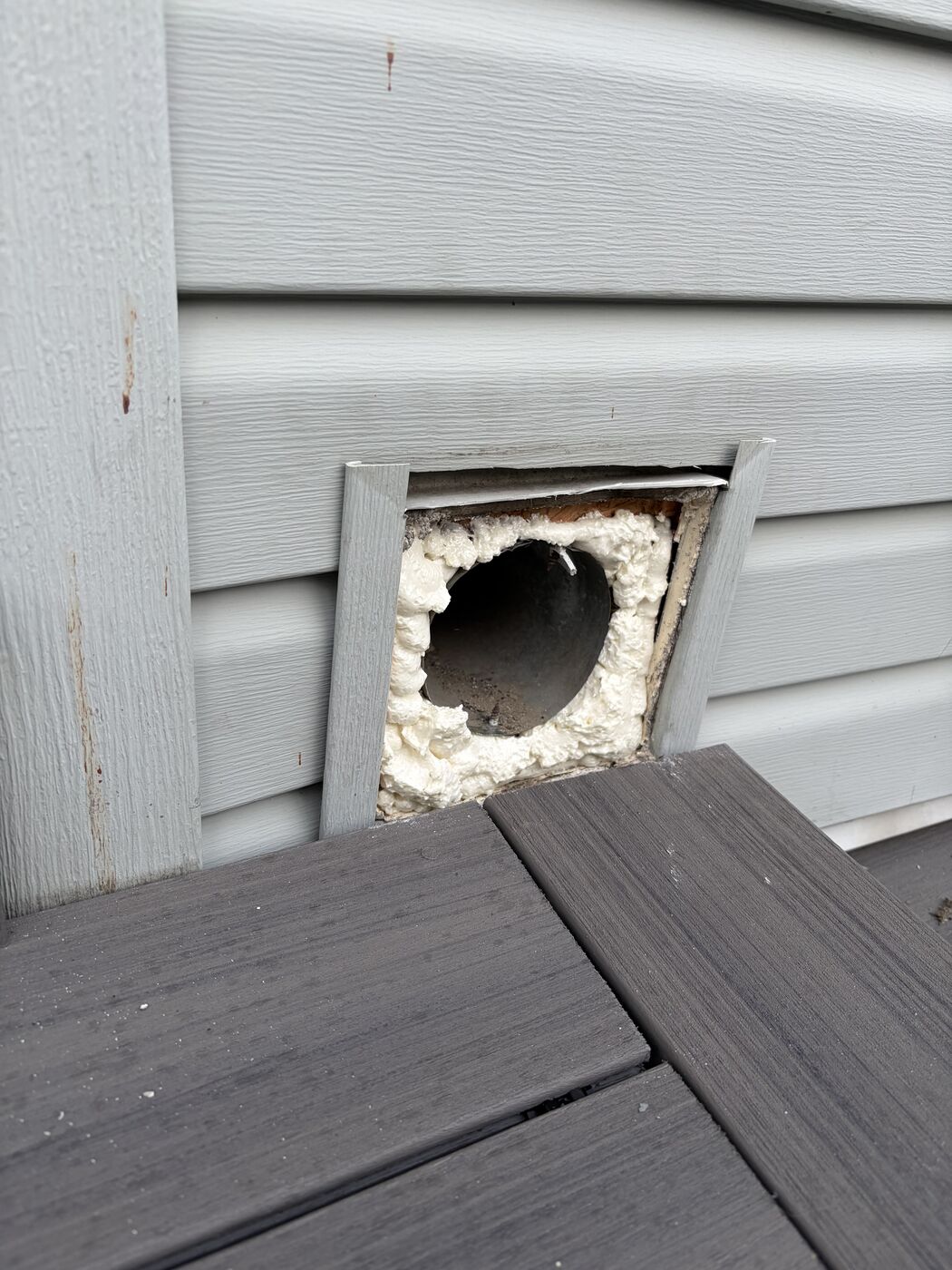

Every gap around both ducts gets sealed with expanding foam before anything is covered up, so the airtight layer is behind the vent, not just around it.
Black mounting plates and louvered Thermo-Trap units screwed down over the sealed openings.
A matched set that blends into the brick, with louvers that open under airflow and drop closed on their own.
This older opening had broken brick and a loose galvanized duct rattling around inside it. Four steps from crumbling hole to a finished, labelled Thermo-Trap unit.
Broken brick around the opening and a loose duct with daylight visible around it on every side.
A new duct collar centred in the opening with the cavity foam-sealed the whole way around it.
The mounting frame goes on flat against the brick, covering the repair and giving the trap a true surface to seal to.

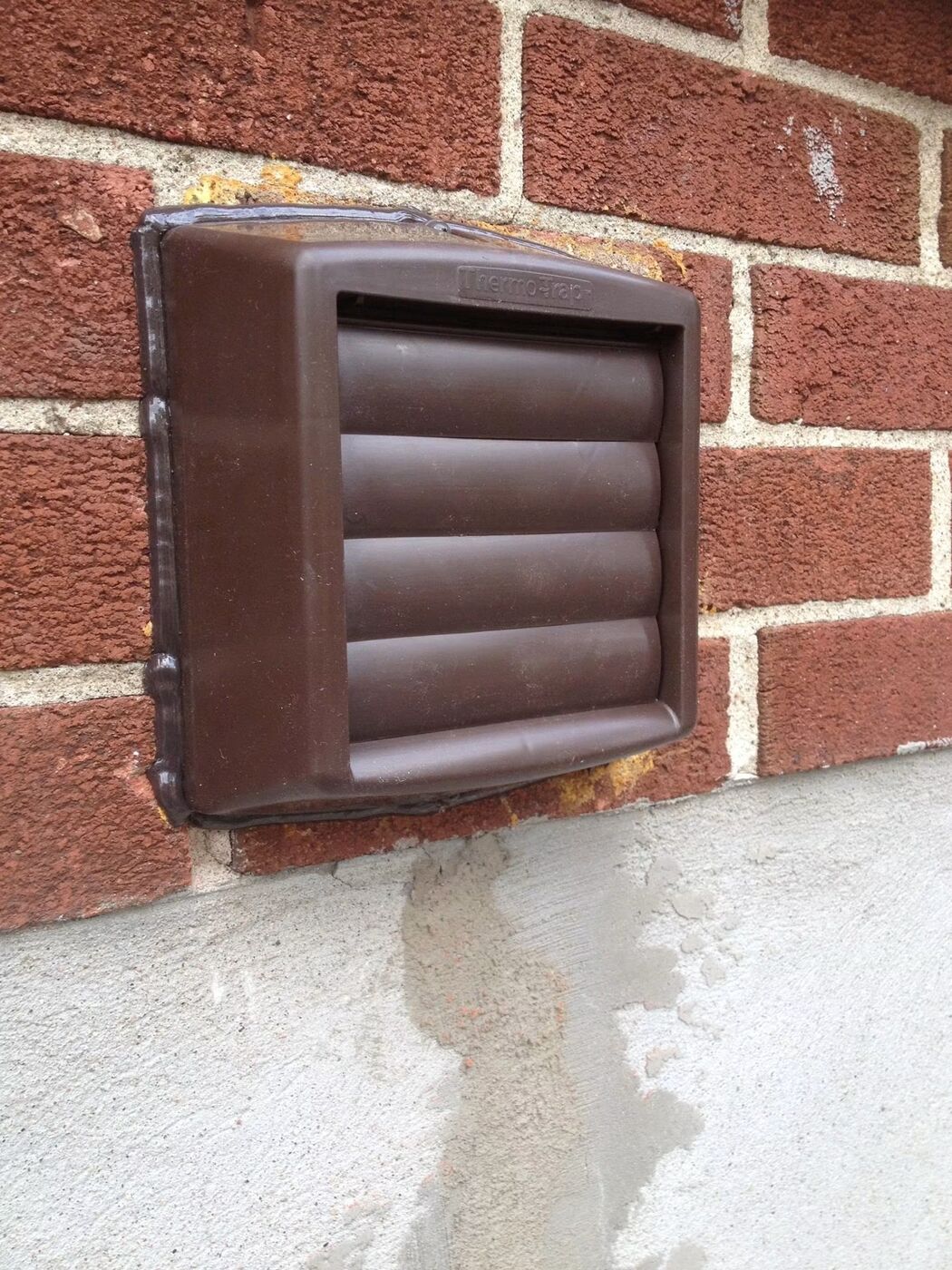

A sealed, labelled Thermo-Trap where the crumbling hole used to be. No gaps, no rattle, no entry point.
Vent sealing starts with cleaning and prep — a trap installed over a lint-packed duct is a fire risk, not a fix.
A rotary brush pulls years of packed lint out of the line first. Every dryer vent we trap gets cleaned, because sealing a clogged duct just locks the problem in.
High wall vents are part of the same visit. Our installer handles the ladder work, so upper-floor bathroom fans and dryer runs get the same treatment as ground-level vents.
What you never see from the ground: every soffit box is packed with closed-cell foam around the duct collar before it goes up, so the vent stays above freezing all winter.
Caught mid-job: the old vent was an open hole in the soffit (left), and the new white colour-matched box is already mounted beside it. Each box is sealed to the soffit so no air leaks around it.
